Evaporative Condenser 1.2m³ Heat Exchanger with 5200KG Capacity
| 원래 장소 | 중국 장수 |
|---|---|
| 브랜드 이름 | sureway |
| 최소 주문 수량 | 1 |
| 가격 | $28,000 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 치수 | 3246 2173 3927 | 용량 | 1.2 m³ |
|---|---|---|---|
| 내부 재료 | SS304, 316L, 탄소강 | 외부 재료 | SS304, FRP, PVC |
| 설계 압력 | 0.1-3 MPa | 작업 온도 | -120-45 - |
| 무게 | 5200 KG | 최대 주위 온도 | 45 ℃ |
| 적용 가능한 냉각제 | R717/R22/R404A | 부동액 디자인 | 1.2 |
| 핵심 구성 요소 | PLC, 압력 용기, 모터 | 디자인 표준 | ASME |
| 유형 | 강제 환기 유형, 유도 환기 유형 | 작업 온도 범위 | -20℃~120℃ |
| 강조하다 | 5200KG Evaporative Condenser,Evaporative Condenser Heat Exchanger,Heat Exchanger for Industrial Cooling |
||
제품 설명
Evaporative Condenser
Product Specifications
| Attribute | Value |
|---|---|
| Core Components | PLC, Pressure vessel, motor |
| Dimensions (L×W×H) | 3246 × 2173 × 3927 mm |
| Volume | 1.2 m³ |
| Inner Material | SS304, 316L, Carbon Steel |
| Outer Material | SS304, FRP, PVC |
| Design Pressure | 0.1-3 MPa |
| Design Standard | ASME |
| Working Temperature | -120°C to 45°C |
| Warranty | 1 Year |
| Weight | 5200 kg |
| Type | Forced ventilation type, Induced ventilation type |
| Applicable Refrigerants | R717/R22/R404A |
Key Features
- Easy to Operate with PLC interface
- Remote Control and Monitoring capabilities
- Long Service Life with durable construction
- High Productivity and accurate temperature control
- Robust design with industrial-grade materials
- Environmental compatibility with various outer materials

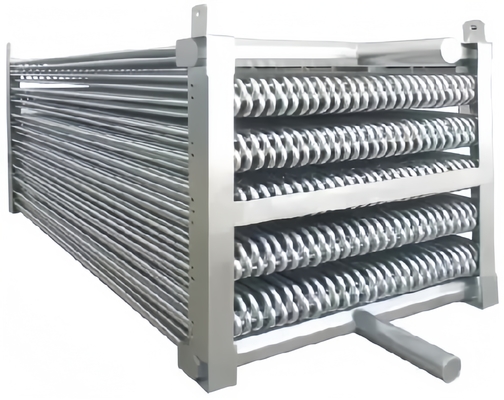

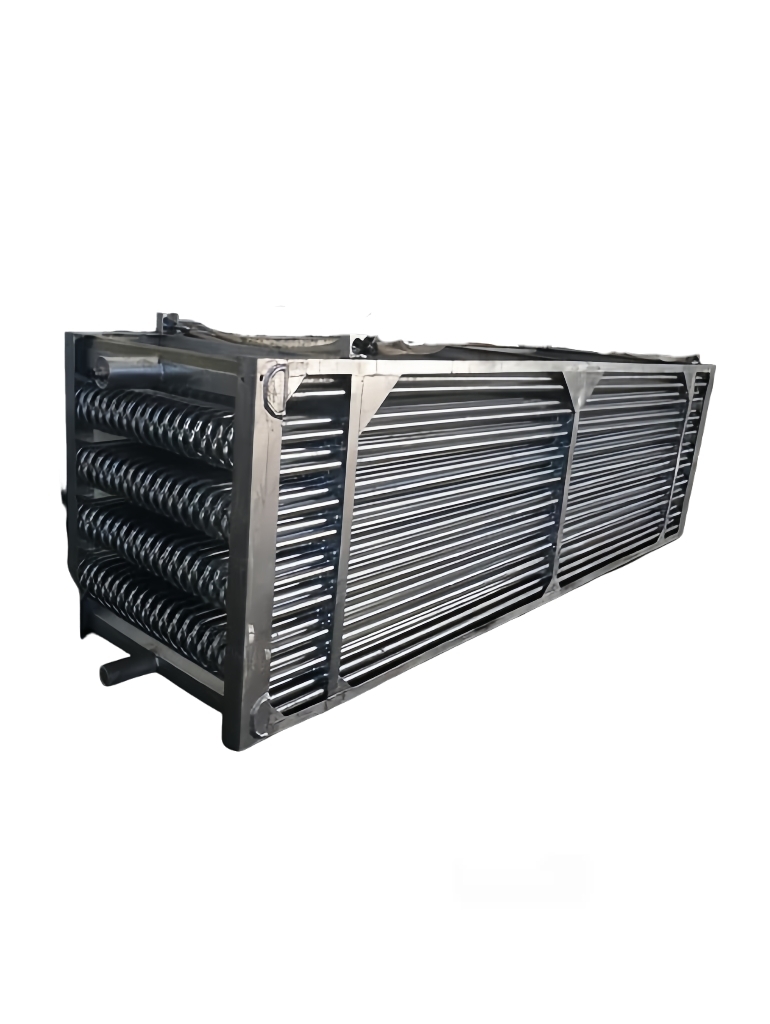

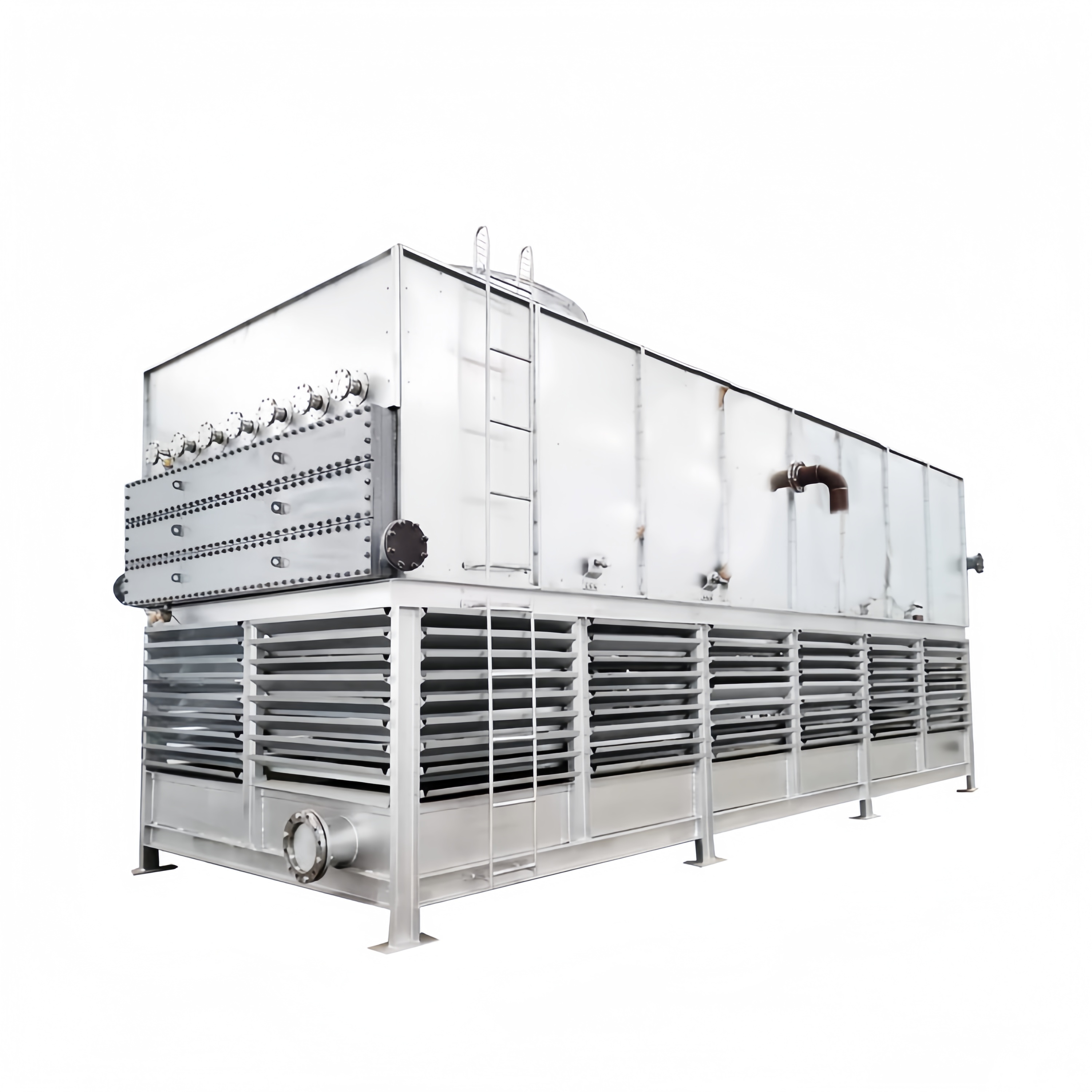

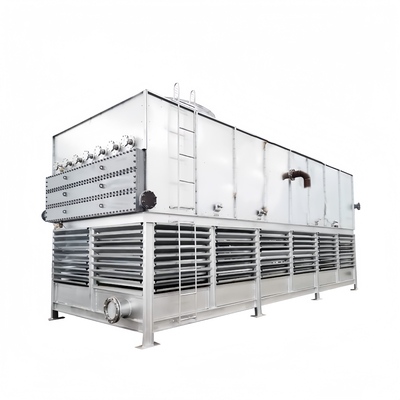

Product Images
Manufacturer Information
Shanghai Sureway Industrial Company Limited specializes in chemical engineering, offering advanced production technology development, engineering design, and equipment supply. With over 20 years of experience, we provide cutting-edge solutions in sulfur chemicals and gas liquefaction/separation technologies.
Frequently Asked Questions
Who are we?
Based in Shanghai since 2008, we serve global markets with a team of 51-100 professionals.
How do we guarantee quality?
Pre-production samples and final inspection before shipment ensure consistent quality.
What can you buy from us?
LNG plants, CO2 plants, chemical equipment, industrial automation systems, and more.
Why choose us?
We provide comprehensive technical support and specialized equipment for gas processing and chemical plants.
What services do we provide?
We accept various delivery terms and payment methods, with multilingual support available.
