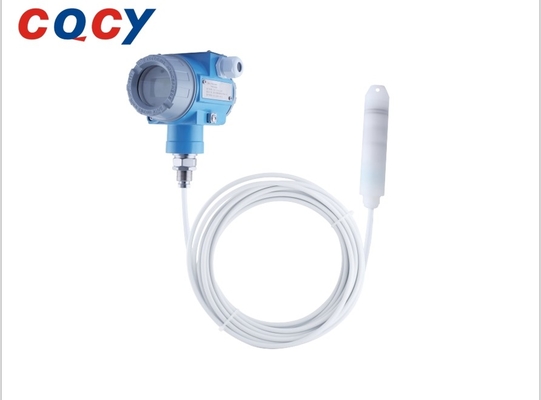

CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485
| 원래 장소 | 상하이, 중국 |
|---|---|
| 브랜드 이름 | CQCY |
| 인증 | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| 모델 번호 | CYW71C 부식방지형 입력 액체레벨 트랜스미터 |
| 최소 주문 수량 | 1SET |
| 가격 | USD+50 dollars to 1000 dollars+1set |
| 포장 세부 사항 | 판지 패킹 |
| Delivery Time | 10-30 work days |
| 지불 조건 | L/C, D/A, D/P, T/T, 웨스턴 유니온, 머니그램 |
| 공급 능력 | 일 당 3000+1set+ |
제품 상세 정보
| 1. 범위 | 0~20~200kPa | 2.Out put | 4~20mA、4~20mA HART、RS485 |
|---|---|---|---|
| 3.Power supply | 9~28VDC、13~28VDC、15~28VDC、15~24VDC | 4.Accuracy | 0.5%FS |
| 5.Measurement medium | Fluid compatible with the contact material | 6.Medium temperature | -40~60℃ |
| 7.Explosion-proof type | Burst proof Ex db IIC T6 Gb blow proof dust Ex tb IIIC T80℃ Db intrinsically safe Ex ia IC T6 Ga (only 4 ~ 20 mA output) dust intrinsically safe Ex iaD 20 T80℃ (only 4 ~ 20 mA output only) Note: intrinsically safe must be supplied through the safety grid o | 8.Stability energy | Si 0.2% FS / year |
| 강조하다 | RS485 액체 레벨 송신기,4~20mA 액체 레벨 송신기,hart 액체 레벨 송신기 |
||
제품 설명
CYW71C Series of liquid level transmitter products use the 0EM pressure sensor with ceramic piezoresistivity as the signal measurement element, and through the computer automatic test, using the laser resistance control process for the wide temperature range of zero and sensitivity temperature compensation. The probe shell is made of PVDF anti-corrosion material, the sealing ring is made of fluorine glue, and the transmission cable is made of tetrafluoride material, which has excellent anti-corrosion performance.
